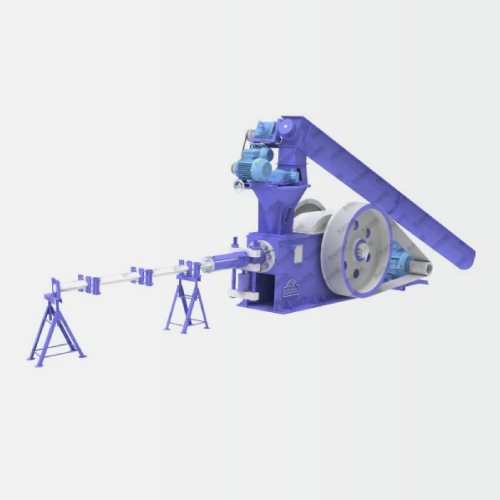

The Super 70 by Radhe Industrial Corporation is the epitome of efficiency and versatility in the world of biomass briquetting equipment. With its compact design and advanced technology, this machine delivers top-notch performance and production capacity, making it the ideal choice for industries looking to process medium volumes of raw material into high-density briquettes.

The Super 70 boasts of a 200 mm stroke and operates at a speed of 240 RPM, making it capable of producing 750 Kg / Hour of high-quality briquettes, with a variability of ±20% depending on the density and quality of the raw material used. Its power requirements are modest, with only 49 HP needed to run the machine, making it an energy-efficient option for your production needs.

The finished product (biomass briquette) of the Super 70 is cylindrical in shape, with a diameter of 70 mm and a length ranging from 150 mm to 400 mm. The machine can handle raw materials of up to 10 mm size, eliminating the need for pre-grinding, and saving you time and resources.

With its advanced technology and state-of-the-art design, the Super 70 is a machine that delivers exceptional performance and reliability. Its compact size and cost-effective operation make it a cost-effective solution for industries looking to process medium levels of production.

In conclusion, the Super 70 by Radhe Industrial Corporation is the perfect choice for industries looking to take their production to the next level. With its advanced technology, efficient operation, and high-quality output, this machine will help you achieve your production goals while keeping costs in check. Invest in the Super 70 and experience the difference for yourself.

Technical Specifications

Production Capacity of Biomass Briquetting Plant (SUPER 70)

• Production Capacity (Output) : 750* kg / hour

Raw Material Specifications (Biomass)

• Maximum Size : Up to 25 mm
• Moisture Content : 12% (Maximum)

Output Specifications (Briquettes)

• Briquette Shape : Cylindrical
• Diameter : 70 mm
• Length : Variable (Approximately 1 feet)

Electricity / Power Consumption

• Total Connected Power Load : 50 HP (Approximately)
• Practical Used AMP Load : 40 to 65 AMP (Approximately)
• Power Consumption : 35 to 40 Units / MT

Individual Electric Data

• Briquetting Press Main Electric Motor : 40 HP
• Feeding Cuppy Electric Motor : 5 HP
• Screw Conveyor Electric Motor : 3 HP
• Lubrication System Electric Motor : 2 HP

Area & Size

• Foundation : 16 feet X 5 feet
• Machine Room (For 1 Machine) : 12 feet X 4 feet (Minimum)
• Total Required Area for Project : 500 meter cube or More (Minimum)
